Spring selection has a direct effect on force accuracy, part life, and mechanical stability. A poor choice can lead to weak return force, excess stress, early wear, or uneven movement in the assembly. That is why the technical review should come before final approval.

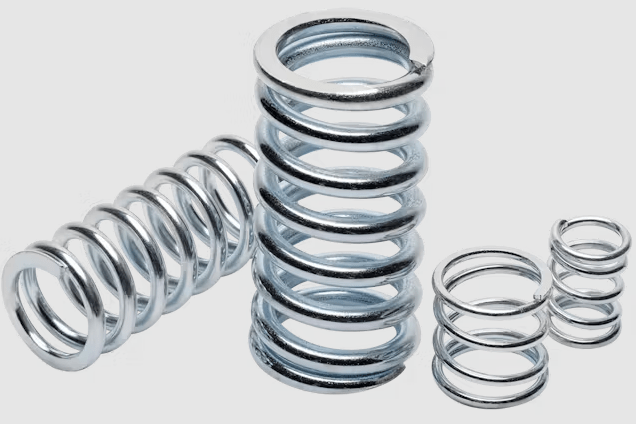

A well-chosen compression spring must match the load, space, and motion demands of the product. Good selection depends on measurable values, not visual fit or rough estimates. The sections below cover the key parameters that deserve close attention.
Load and Spring Rate
Force performance sits at the center of spring selection. The load must match the task. The points below highlight the values that need close review.
- Spring rate: This shows how much force changes as the spring deflects.
- Working load: This confirms the spring can deliver the required force at the actual operating height.
- Load consistency: This helps support repeatable motion and more reliable product behavior.
These values shape how the spring responds in real use. A mismatch here can affect alignment, motion quality, and part life across repeated cycles. This is one reason the right spring can improve both accuracy and durability in a finished product.
Free Length and Solid Height
Dimensional limits matter just as much as load values. Free length defines the spring before force is applied, while solid height marks the point where the coils fully close. These two measurements help prevent overload and space conflict inside the assembly.
A spring that is too long may create unwanted preload before motion starts. A spring with poor solid height clearance may bottom out under full compression and lose performance. Careful review of these dimensions helps protect the spring and nearby parts.
Wire Diameter and Coil Diameter
Basic geometry has a strong effect on spring behavior. Small dimensional changes can alter strength, stress, and fit within the housing. Besides, good dimensional control helps the part move smoothly through its full travel range. The points below show the diameter values worth comparing.
- Wire diameter: This affects load capacity, spring rate, and resistance to stress.
- Outside diameter: This must suit the available space and avoid contact with nearby walls.
- Inside diameter: This matters when the spring works over a rod or central guide.
Material and Surface Quality
Material choice affects strength, fatigue life, corrosion resistance, and temperature performance. A spring used in dry indoor equipment may need a different alloy than one used in heat, moisture, or chemical exposure. Surface finish and protective treatment also influence long-term durability.
This is where the manufacturer plays a critical role in final spring quality. A capable producer must control material sourcing, surface condition, and treatment standards so the finished part performs as expected under repeated stress. Strong manufacturing quality helps preserve force stability, improve durability, and reduce the risk of early failure.
End Type and Alignment
Spring ends affect how force transfers into the assembly. Closed and ground ends can improve seating, while other end styles may suit simpler designs or lighter-duty uses. The end form should match the motion path and support needs of the product.
Alignment deserves equal care because poor guidance can lead to bowing or uneven contact. A spring that shifts off axis may create side load, noise, or irregular wear in nearby parts. Stable seating helps a compression spring maintain better force accuracy through repeated use.
Strong spring selection depends on more than one measurement alone. Load, spring rate, length limits, coil geometry, material choice, and end form all shape final performance. When these parameters match the application, the result is a more reliable and better-controlled mechanical system.
